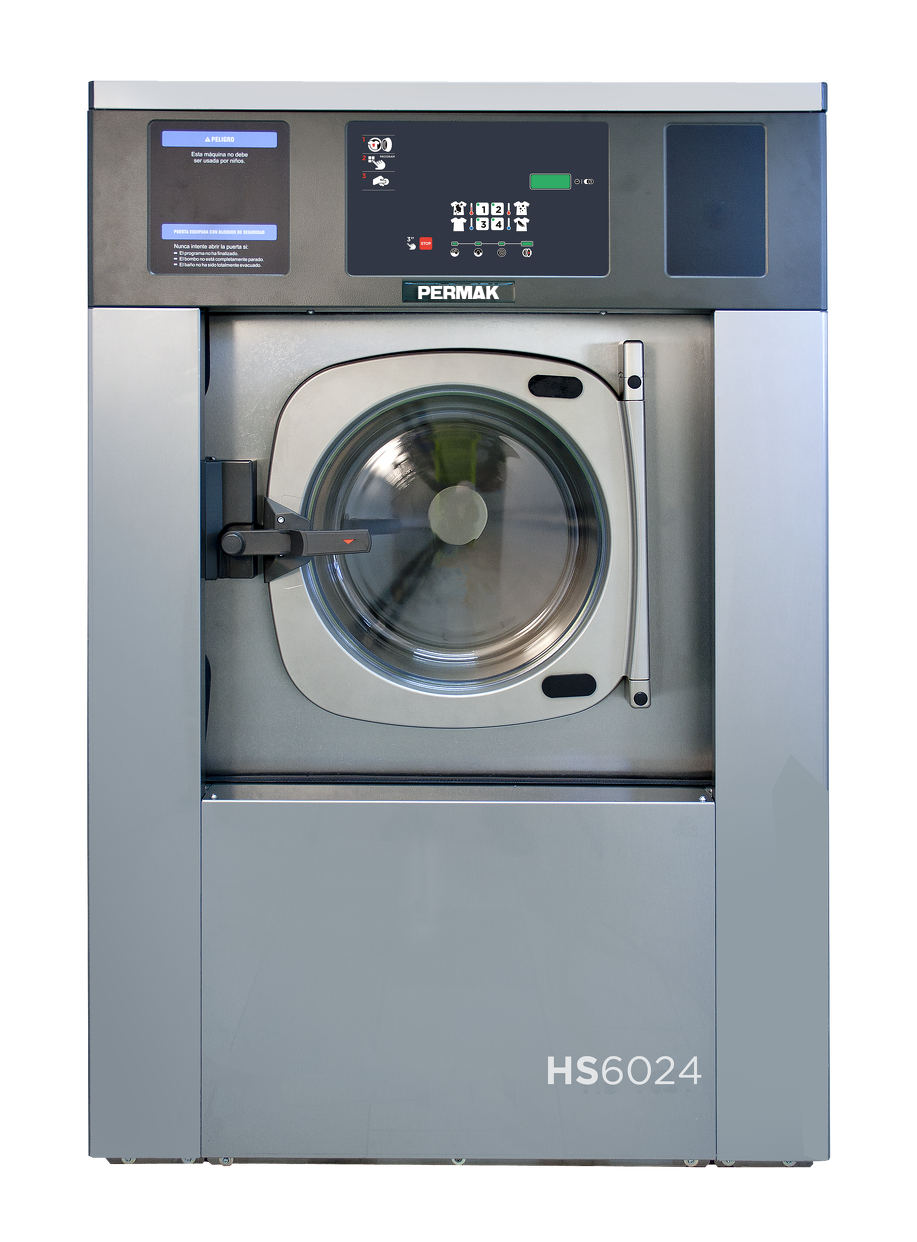

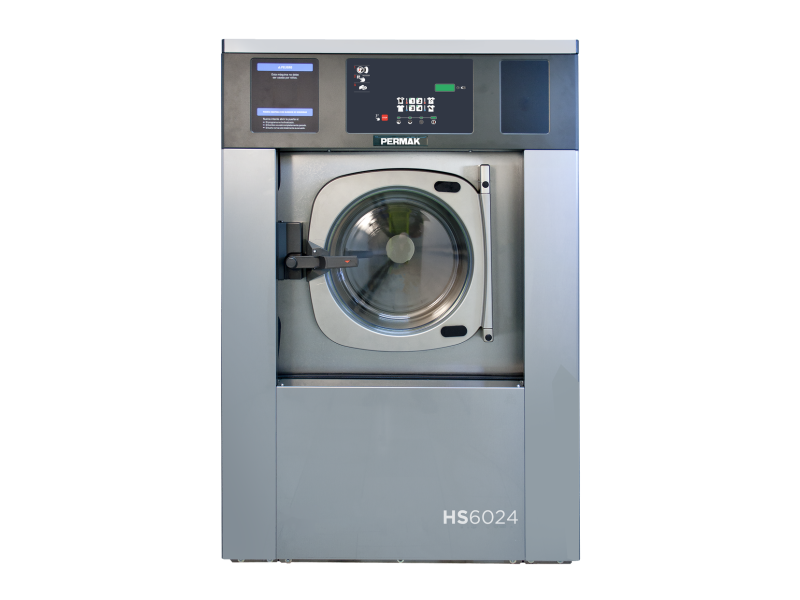

Permak HS 6024 Industrial Washing Machine
Permak HS 6024 Industrial Washing MachineHS Series
Washing Systems
Economic, Special Drum Design (AquaFall), Powerful Cleaning
Thanks to the special drum design (AquaFall), you reach perfect washing and rinsing.
Due to the reduced friction of your valuable textiles with the AquaFall system, your textiles do not lose their first day value without being damaged.
Smart dosing system allows you to use standard powder and liquid chemicals. It offers the most economical solution for your needs.
Model/Type: Permak Model HS6024
Nominal Capacity: 24 kg/load (ff:1/10, V:239 liters, ¢765-520 mm.)
Operation Capacity: 30-36 kg/h. (Tproses: ~40-45 min.)
Operation System: Fully Automatic/ Microprocessing Contr.
Structure: Suspension, Free Seated.
Operating Speed: 42-995 rpm (G's:400.)
Heating System: Steam, 5-15 kg/h.~Electr.-15,0 kW. "HW50-70ºC:0,11 kWh/kg.teks."
Electricity Conn: 380-400/50/3-1,8 kW./# 0,8 kWh.
Unit Weight (~): 585/ 700 kg. (net/operational.)
External Dimensions (~): 0975*1275*1480 mm.
Functional Features:
Ergonomic Design developed for chemical/aqueous system textile & laundry washing processes.
Conventional Open Pocket Structure with free sitting, front loading and unloading.
Heavy duty Super Body Construction for long years trouble free operation.
Bi-directional MDS Plus Shock Absorber shock absorber system that absorbs 95% of vibration.
Improved Microprocess Control System where all process parameters can be controlled.
IMTx (Inteli Manager Tool) screen where process parameters can be monitored graphically.
"G Drive" (single motor-inverter) Technology providing optimum speed and rotation angle control.
High energy and time savings in drying processes with high spin speeds.
(G's˃350, Relative Humidity: 42-50%, Saving : 200-250 kcal/kg.textile.-charge.)
Just in Load function that provides water and chemical dosage adjustment proportional to the loading weight.
Aquafall System (on the wings) creating a Water Wall that increases washing rinsing efficiency
Aquamixer (hot/cold water mixer valve) providing very precise washing bath temperature
Autocheck Twin Lock safety mechanism that controls the lid locking at two levels.
Programmable and water saving Multi (6) Water Level Control.
Double sided polished, complete rusted steel Care TouchTanbur for preventing textile wear.
Automatic Load Adjustment & Balancing System which is activated in case the load is not fully distributed.
Total 5 powder and 6(+6) liquid detergent feeding system with automatic operation.
Structure suitable for Wet Clean washing system.
