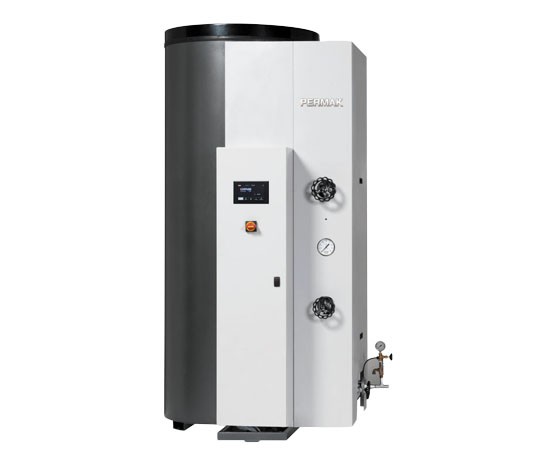

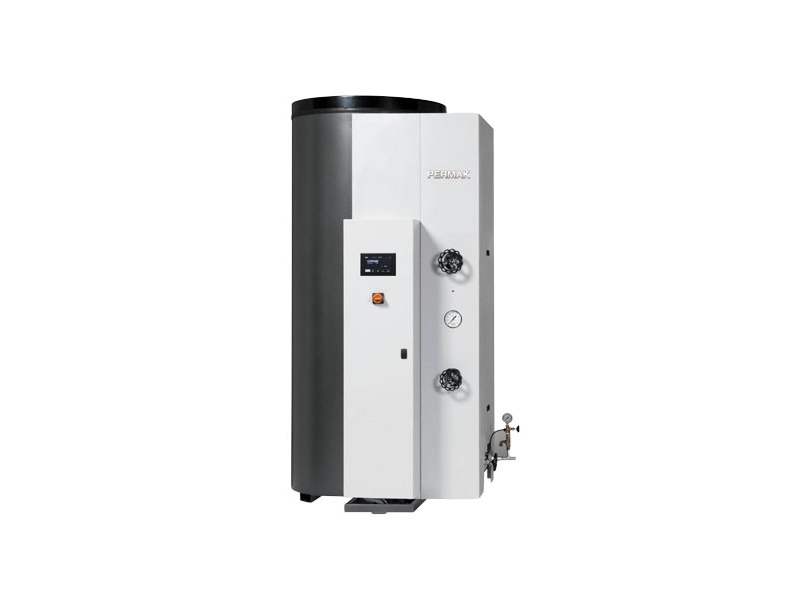

Medium Capacity U - Series
Medium CapacityU - Series
Steam Generators(97/23EC Category II-III, V(lt.)*P(bar)<1.000)
Low Water Volume Structure with serpentine that does not cause fatal damage in case of explosion.
Heavy-duty Robust Body Construction.
Vertical Type Design with Spiral Serpentine allowing High Pressure operation (up to 32 bar).
Fully Automatic Microprocess Control Module with electronic pressure and capacity control.
Protected Front Control Panel where all command and control fixtures are gathered.
Automatic monitoring and warning function of all kinds of external factors (water cut, chimney clogging, etc.) with Error Indication Scheme.
High efficiency (>92.0%) Exclusive Beck Burner and Gas Path Equipment for complete combustion.
Modulating Power Control System, which provides high savings in different capacity uses.
Additional Operating Economy (+1.9-2.0%) provided by heating the combustion air to a temperature above 100ºC and minimizing the heat radiation to the environment with the patented double-walled Outer Air Jacket.
Triplex Feedwater Pump suitable for high pressure operation.
Double Serpentine Design, which provides significant time and cost advantage by only intervening in the lower coil in coil replacement requirements.
EN, DIN, TUV Certificates. Lloyd and Breu Veritas certification facility.
Coupling possibility with Thermotimat Automatic Start/Stop arrangement. (Weekly programmable)
Pre-Piping CVE Package Ready Water Supply System option for ease of installation in the field.
Permak / Certuss.
